High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set

  • 1
  • 2
  • 3

MOQ : 1 Set

Price : US $1,500-2,800 / S

Place of Origin : China

Brand Name : Sansion

Certification : CE/CNAS/ISO9001

Packaging Details : Plywood Case

Payment Terms : L/C T/T

Supply Ability : 100 Units/Month

Model NO. : SXGKC

Max Diameter of Workpiece : <500mm

Mass Scope of Workpiece : <900kg

Type : Circuit Breaker Analyzer

Maxcapacity : <1000KN

Accuracy Grade : 0.5

Load Way : Electronic Load

Loading Method : Dynamic Load

Display : Digital

Control : Manual Control

Weight : 0-100Kg

Power Source : AC220V

Oil Cylinder Position : Without

Time Test : 6 Channels (12 Channels for Option)

Data Storage : 100 Groups

Test Range : 0.1ms~999.99ms

Application Scenarios 1 : Electrical Testing

Application Scenarios 2 : Switchgear Testing

Application Scenarios 3 : Power System Maintenanc

Transport Package : Plywood Case

Specification : ISO9001 SGS

Trademark : Sansion

Origin : China

HS Code : 9030820000

Production Capacity : 100 Units/Month

售后服务 : Onsite and Video Call Remote Guidance

保修期 : 2 Years Free Warranty Long Life Service

Contact Now


High Voltage Equipment HV Switch Dynamic Characteristic Tester Circuit Breaker Test Set

General Information:
control devices in power systems. Given their widespread deployment and complex operational requirements, their reliability directly impacts not only their own performance but also the stability of the entire grid. Traditional dynamic characteristic testing methods suffer from complex operation and low accuracy. To address these challenges, we developed the GKC series High-Voltage Circuit Breaker Characteristic Tester.

Features:
1.Wide Compatibility: Suitable for mechanical characteristic testing of all types of SF6 switches, GIS, vacuum switches, and oil circuit breakers.
2.Strong Anti-Interference: Accurate measurements even near 500 kV live busbars in substations.
3.Universal Speed Sensor (Optional): Linear travel or rotary speed sensors for easy installation.
4.One-Time Measurement: Obtains all mechanical characteristic data and waveform graphs in a single operation.
5.Data Storage: Onboard memory with real-time clock for recording test dates and times.
6.Large LCD Screen: High-visibility, backlit, wide-temperature-range display with adjustable contrast and power-off memory.
7.User-Friendly Interface: Chinese menu operation, built-in printer for instant reports.
8.PC Connectivity (Optional): Data analysis software for generating test reports via dot-matrix, laser, or inkjet printers, enabling computerized field testing.
Technical Parameter:
1. Operating Environment
1.1 Input Power: 220V±10%, 50Hz±10%
1.2 Atmospheric Pressure: 86~106 kPa
1.3 Temperature: -10~40ºC
1.4 Humidity: ≤80% RH
2. Safety Performance
2.1 Insulation Resistance: >2 MΩ
2.2 Dielectric Strength: Withstand 1.5 kV power-to-shell AC voltage for 1 minute, no flashover or arcing.
3. Basic Parameters
3.1 Time:
Range: 20,000.0 ms
Minimum Resolution: 0.01 ms
Error:
a. 200 ms range: 0.01 ms ±2 digits
b. 2,000 ms range: 0.1 ms ±2 digits
c. 20,000 ms range: 1 ms ±2 digits
3.2 Speed:
Range: 20.00 m/s
Resolution: 0.01 m/s
Error:
a. 0-2 m/s: ±0.1 m/s ±1 digit
b. Above 2 m/s: ±0.2 m/s ±1 digit
3.3 Travel:

Range Resolution Error
Vacuum Circuit Breaker 50.0 mm 0.1 mm 0.1 mm ±1 digit
SF6 Circuit Breaker 300.0 mm 1 mm
Minimum Oil Circuit Breaker 600.0 mm
3.4 Current:
Range: 20.00 A
Resolution: 0.01 A
3.5 Output Power Supply: DC 0~300 V digitally adjustable / 20 A (instantaneous operation), Resolution 1 V.
Maximum speed 20m/s,resolution:0.01m/s
Measurement accuracy ±1.0% reading ±0.05
Travel Measurement Range 6mm~280mm(Extendable to 6~700mm upon request)
Minimum Travel Resolution 0.1mm,Distance Measurement Accuracy:±1.0% reading ±0.1mm
Time Measurement Range 10ms~15s
Time Resolution 0.1ms;Time Measurement Accuracy:±0.5% reading±0.2ms
Minimum Action Synchronization Resolution 0.1ms;Synchronization Measurement Accuracy:±0.5% reading±0.1ms
Testing Channels (8 channels) 6 channels for contact time measurement,1 channel for velocity,1 channel for coil current
Operational Power Supply Output Voltage: Adjustable DC 30V-300V,Current: 20A,Digitally programmable control,Continuous operation duration: 3s
High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set

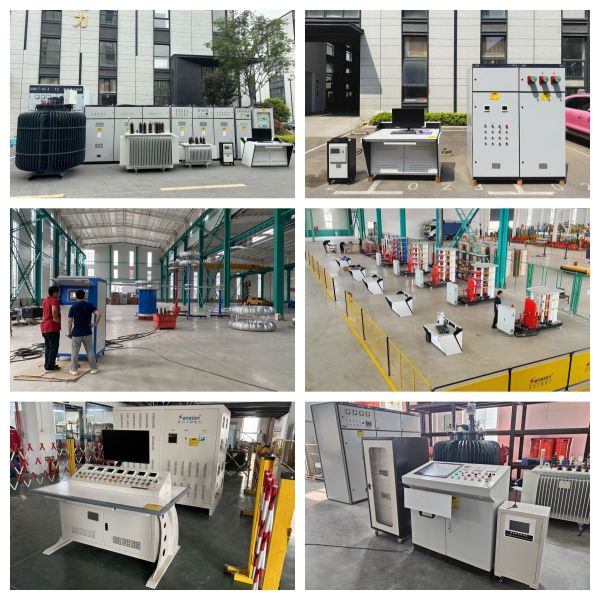

About Sansion

Sansion Power Electric was established in 2005, a technocrat who have rich experience of more than 20 years in R&D, manufacturing and marketing of power electrical testing products, which are widely used in the fields of power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and etc.
Sansion Power Electric contains R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, general office, sales departments, information office and ete, now we have more than 80 employees including 20 technical engineers. We have obtained the IS09001 quality system certification and all products strictly conform to theinternational lEC and Chinese state standards.



High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set
Certifications


High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set


High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set
Packing & Delivery


High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set
Customer Visit


High Voltage Equipment Hv Switch Dynamic Characteristic Tester Circuit Breaker Test Set
FAQ
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2005 and have twenty years of production experience. Our company has reliable production lines, test rooms and R&D centers.

Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.

Q3: Is the quality guaranteed?
A: In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.

Q4: What are the after-sales terms?
A: What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.

Q5: What are the cooperative countries or regions?
A: Products have been successfully exported to the United States, French ,Brazil, Australia, Spain, Portugal , Oman ,Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.
