SXFA Series CT/PT Comprehensive Tester
Features
- Supports CT and PT testing.
- Complies with GB 1207, GB 1208, and other regulatory requirements.
- Self-contained unit-no external auxiliary equipment required for complete testing.
- Built-in micro thermal printer enables on-site result printing.
- User-friendly interface with intelligent prompts for easy operation.
- Large LCD display with graphical UI.
- Automates determination of CT/PT excitation kneepoint values per standards.
- Automatically generates 5% and 10% error curves.
- Stores up to 3,000 test records (non-volatile memory retains data after power loss).
- USB data export for PC reading and Word report generation.
Overview

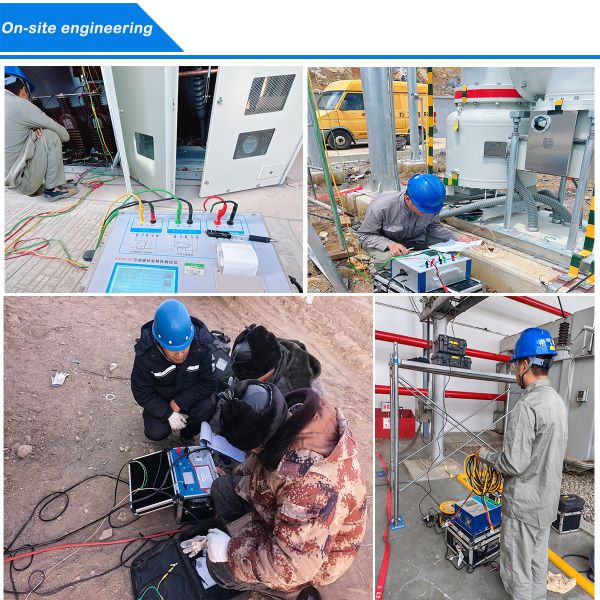

The SXFA Series analyzer performs automated testing on protection- and metering-class CT/PT characteristics, suitable for both laboratory and field applications. Compliant with GB1207, GB1208, GB16847 (IEC60044-1, IEC60044-6), and other standards, it streamlines testing workflows by eliminating manual voltage adjustment, data recording, and curve plotting. Equipped with a built-in high-speed thermal printer, it supports on-site report printing and data storage. USB connectivity enables seamless data transfer for further analysis and documentation, enhancing operational efficiency and ease of use.
Major Test Functions
| I. Current Transformer (CT) |
II. Voltage Transformer (PT) |
| 1. Magnetization Curve |
1. Excitation Characteristic Test |
| 2. Transformation Ratio Test |
2. Transformation Ratio Test |
| 3. Polarity |
3. Polarity |
| 4.5% and 10% error curve, ALF |
4. Withstand Test of Power Frequency Alternating Current |
| 5. Current Injecting |
5. Resistance Test |
| 6. FAST TEST |
6. Calculation of Knee Point Value |
| 7. Withstand Test of Power Frequency Alternating Current |
7. Actual Secondary Load Test |
| 8. Automatic Calculation of Excitation Knee Point Value |
|
| 9. Actual Secondary Load Test |
|
| 10. Resistance Test |
|
Technical Parameter
| Operational Power Supply |
AC220V±20V, 50~60Hz |
| Equipment Power Supply Output Waveform |
Sine Wave |
| Single Machine Output Voltage of Excitation Characteristic |
0~1200V |
| Excitation Current Set |
0~20 A |
| Single Machine Output Current of Transformation Ratio Test |
0~600 A |
| CT ratio measurement range |
5~25000A/5A(5000A/1A) |
| PT ratio measurement range |
1~110KV |
| Load Range |
5~500VA |
| Resistance measurement range |
0.01~300Ω |
| Error |
≤0.5%(0.3%*Reading+0.2%*Range) |
| Operating Temperature |
-10ºC~+40ºC |
| Relative Humidity |
<90RH% |
| Altitude |
≤1000m |
